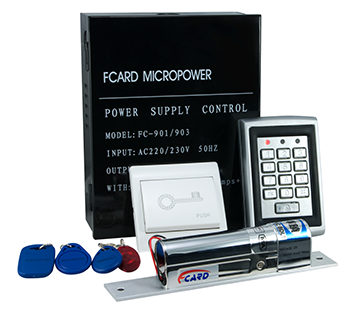

FC-898E metal access controller

FC-898 series metal access controller is a product in the "Fcard Electronics" one door access controller series. FC-898E metal access controller is an independent access controller (hereinafter referred to as "access control") specially designed for electric door locks and the security system is designed to support 4 doors opening methods such as proximity card (EM card and EM compatible card), password opening, proximity card + password opening, and wireless remote control remote opening methods. Users can choose their own suitable door opening methods according to their needs.

Access control programming settings are carried out directly on the password keyboard, without a computer, and the operation is simpler. The access control keyboard self-locking function, the user can set the number of keyboard errors and preset the keyboard self-locking time, which can effectively prevent others from detecting the door password. Anti-dismantling alarm function, when the device is dismantled under working condition, the access control will start the alarm output and prompt sound.

The access control supports illegal door opening alarm. If the device detects abnormal door opening through the door magnetic switch signal, the access control will start the alarm output and prompt sound. The access control has strong anti-interference ability and self-diagnosis protection function to ensure the normal operation of the system safely and effectively. It can store up to 20,000 sets of door opening data information (including proximity card opening data, password card opening data, proximity card + password opening data, wireless remote control opening data), and all stored information will not be lost due to power failure. At the same time, the access control supports doorbell output, which can be used with wired doorbells. This access controller is powerful and easy to install. It is the ideal access control device of choice for offices, homes, computer rooms and public places.

FC-898E access control supports the "firewall" function. FC-898E with firewall function can support identifying those cards that are copied, so as to intercept them so that the copied cards cannot be opened normally.

Connection Port Performance:

1. + 12V: Working power supply anode, input range: DC9-13.8V.

2. GND: Working power supply cathode, signal common ground.

3. OPEN: Exit button switch, low electric unlock.

4. DOOR: Door status switch, connected with door sensor switch low electric means door closed.

5. Bell: Doorbell switch.

6. WG0: Wiegand 26 card reader data line(WG0).

7. WG1: Wiegand 26 card reader data line(WG1).

Lock Output Wiring Port: (electric lock control output)

1. NO: Relay normal opened point, current load capacity is DC 30V/10A

2. COM: Relay common point, current load capacity is DC 30V/10A

3. NC: Relay normal closed point, current load capacity is DC 30V/10A

Alarm Output Wiring Port: (alarm signal output)

1. NO: Relay normal opened point, current load capacity is DC 30V/10A

2. COM: Relay common point, current load capacity is DC 30V/10A

3. NC: Relay normal closed point, current load capacity is DC 30V/10A

Reset Key:

Press the RESET button and keep 2s, buzzer sound with one time means the management password, unlock keeping time etc parameters are restore to default value, unlock keeping timeis 5s. Then, press the RESET button with 5s, buzzer will sound two times, green light flashing. At the same time, the device are formatting the memory, all passwords and cards data will be deleted. the formatting time is according to the memory contents, short maybe some seconds, long maybe 2 minutes.

Features:

Card-reading door opening, password opening door, card plus password door opening, wireless remote door opening, data backup, data recovery, multi-door data copying, anti-detection opening, issuing self-editing card, master card issuing, full card opening, full card opening and automatic registration, anti-breaking door alarm, door open timeout prompt, external doorbell, external card reader, fire alarm linkage, self-recovery management password, multi-mode card issuance, multi-mode card deletion, self-protection, normally open mode, day-to-month mode, door magnetic input, anti-vibration processing, offline operation, firewall.

Integrating the needs of the market and absorbing the suggestions of many users, the access control function can meet the different needs of users. The capacity ranges from 1,000 cards to 20,000 cards, with the same excellent query speed. In the past, independent access controllers only used ID cards and passwords to open the doors. This access control realizes that the ID card, wireless remote control and password can be used to open the door on one device. Adhering to the reliability design technology, and relying on the use of the currently recognized stable and reliable processor on the market, this access control board will provide users with powerful and stable performance.

Memory management technology: Using memory capacity adaptive technology and dynamic linked list indexing technology, it can balance the number of cards, query speed and memory usage efficiency.

Anti-dismantling alarm: After the device is installed and used, if the device is removed in the working state, the alarm switch will be triggered, the buzzer will emit continuous short sounds, and a set of alarm output ports will be provided.

Illegal door opening alarm: After installing the door sensor switch, this function is automatically activated. If the device detects abnormal door opening through the door sensor signal, it will sound a continuous alarm and the alarm port will output low level.

Locking status monitoring: It is only effective for electric bolt locks, and a magnetic switch is required. The device detects the state of the door, and only after the door is closed and stable, the device activates the locking signal to avoid the impact of the electric lock bolt when the door is locked when it swings.

Wiring Diagram:

Working Environment:

Working Voltage: Standard 12V, lowest: 9V, highest: 13.8V.

Working Current: didn't drive the electronic locks, <150mA.

Temperature: 0-85 °C.

Humidity: 30%-90%.

New Support:

Wireless Remote Controller: Built in wireless remote control module, support wireless remote controller to open door, the maximum reading distance about 200m.

Huge Capacity: Built in large memory support 20,000 users.

Day/Night Mode: Everyone can access in daytime, only the staff can access at night.

Normal Opened: It can set normal opened when in business time.

Tamper Alarm: Built in detector can prevent to remote the host, if detect it, it will be alarm immediately.

Keypad Light: New lighting design.

Wrong Wire Protection: Muti-protection circuit, can effective to prevent the wire connect wrong cause damaged.

Breaking Alarm: Door sensor detection can prevent sb break into home, if sb break into home, it will alarm.

Access Control: Can external to connect WIEGAND 26 RFID Reader to achieve access control, income and outgo all need to read card.
