In order to optimise and improve "One Card Pass"system, our company publish a new product: Video door phone, model is: FC-7012E.
Introduction:
“Video Door Phone”is designed by FCARD, it use 4 core design and support proximity card, password, proximity card+password and control by indoor unit four ways to open door. Have door access control function, programming can only use by keypad, easy and convenience operation. Self-lock access control keypad, users can set the error times and locking time to prevent people detect the open password; Tamper alarm function, if remove while working it will sound; Maximum storage to support 1000 cards, use nonvolatile memory, still keep the cards data when power cut. Our products use advanced technology and latest cores which can improve the products stability and durability, at the same time, make the transmit distance further more. It suitable for residential, villa, office and public buildings etc.
Features:
1,Have hands free and monitoring function;
2,Visitors call is displayed automatically;
3,High-fidelity visual Intercom,good quality in intercom;
4,Use high definition camera and latest 7inch LCD screen,besides,advanced and reasonable circuit design,image displayed are clearly,steady;
5,Have IR light;
6,Outdoor unit can connect two indoor unit under without Tractor box;
7,Have independent standalone access control;
8,Easy wiring ,convenient install and maintain easily;
9,Indoor unit is thin-walled hanging design,beautiful outlook, lightweight flexible ,small space.
Parameters:
1, Outdoor unit
Working voltage: DC9-15V(suggest14V)
Working current: <200mA
Working temperature(℃): -40-55
Working humidity: 10-90%
Viewing Angle (°): 150
Night viewing: IR light
Read card type: EM format ID card
Power locks type: Powered open door,Powered close door.
Open locks way: Indoor control,password,proximity card,proximity card+password
Size: 210mm*118mm*20mm
2, Indoor unit
Working voltage: DC9-15V
Working current: <=500mA
Working temperature(℃): -40-50
Working humidity:10-90%
Power:standby: <0.5w working:<10w
Display screen: seven-inch color screen
Automatic closing time: Monitoring: 30s
------------------------------Intercom :60s
Mounting: Wall Mounting
Size: 243mm*152mm*28mm

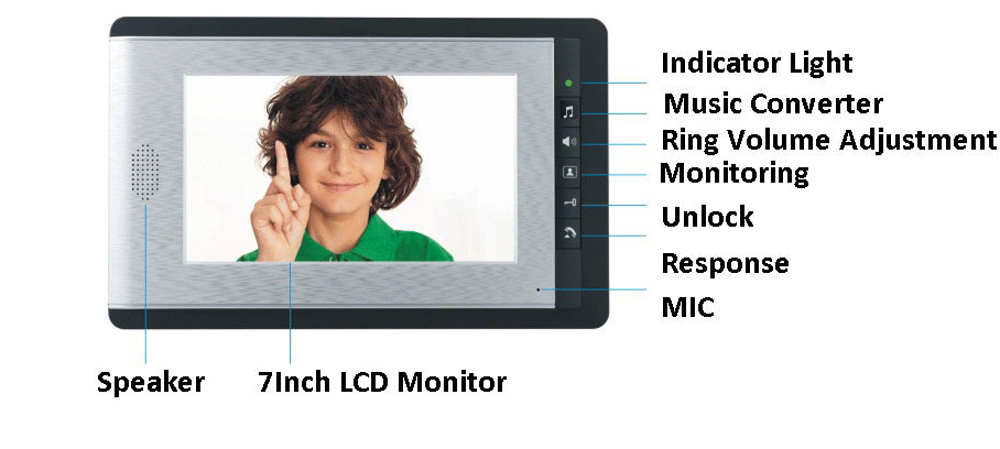

Appearance

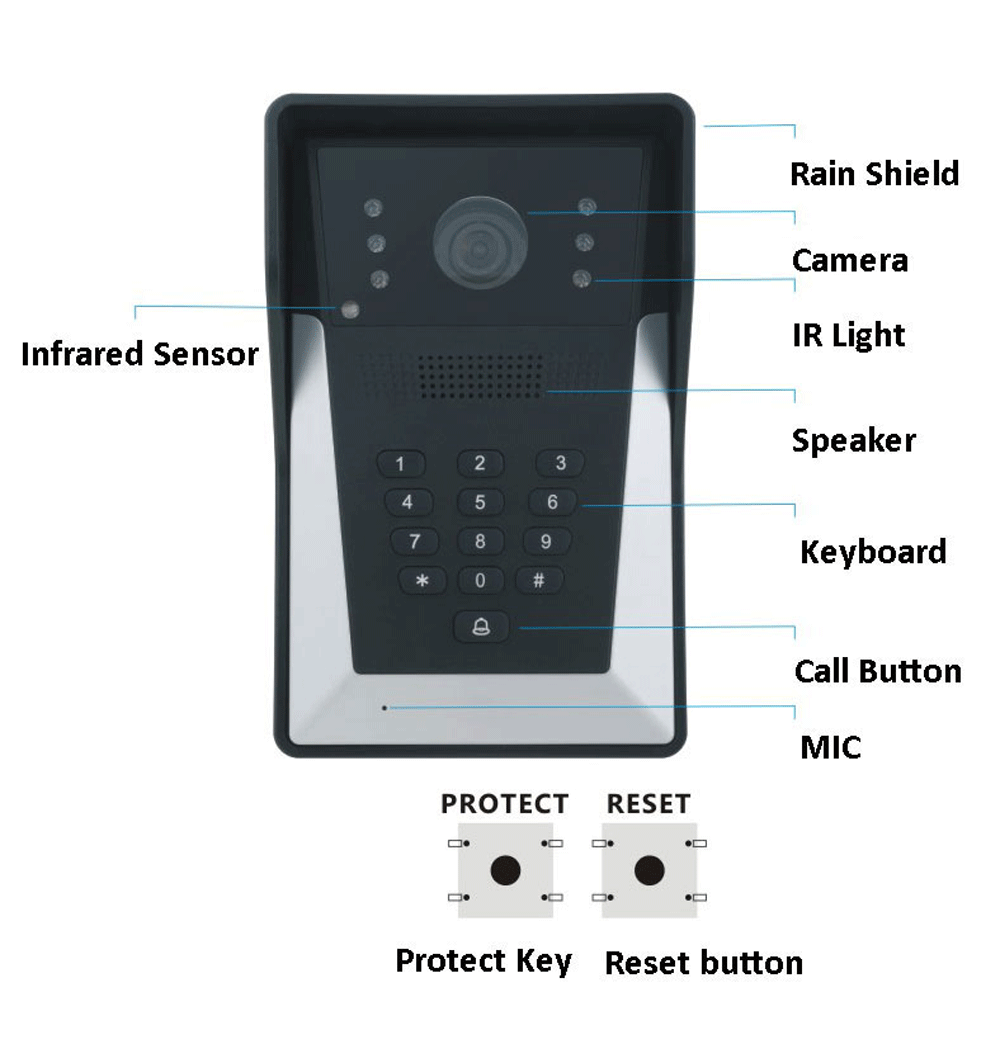

Structure Diagram

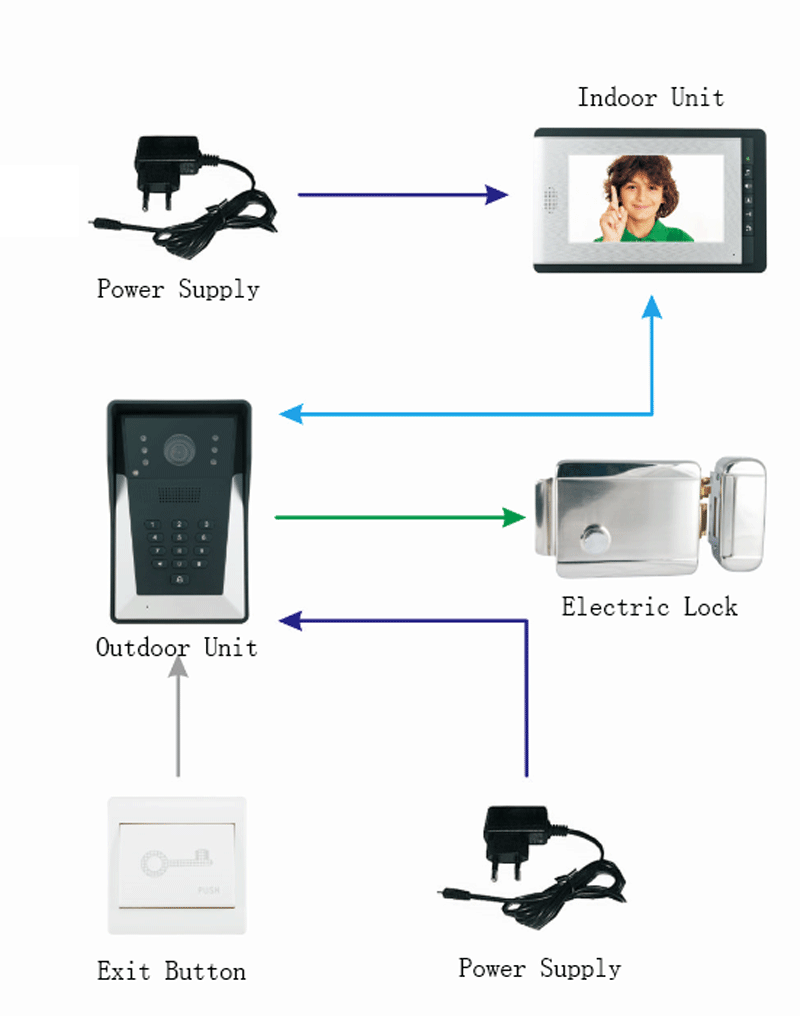

Wiring Diagram

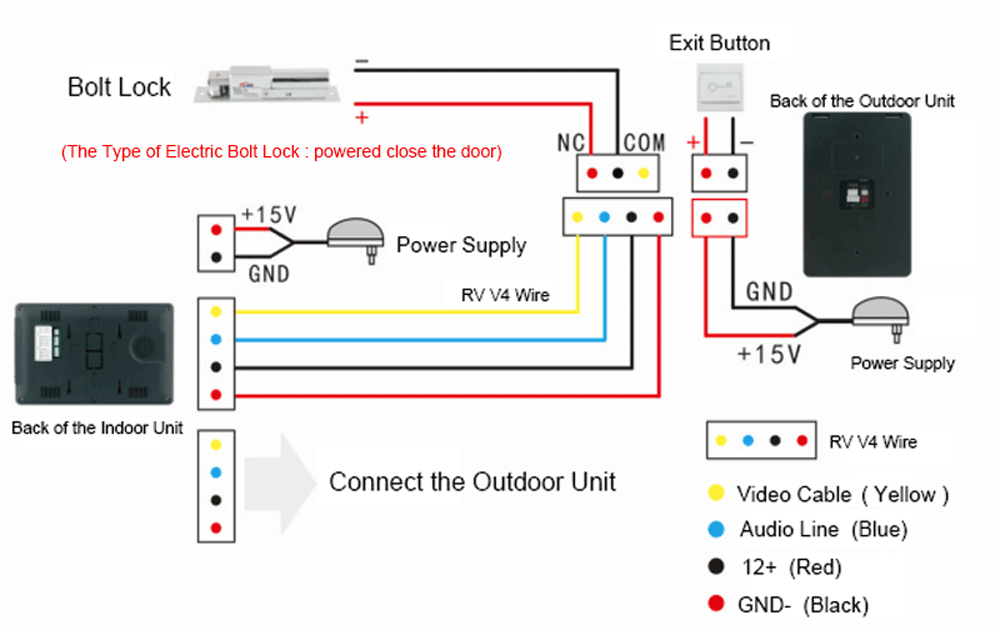

Connect with Electric Bolt Lock

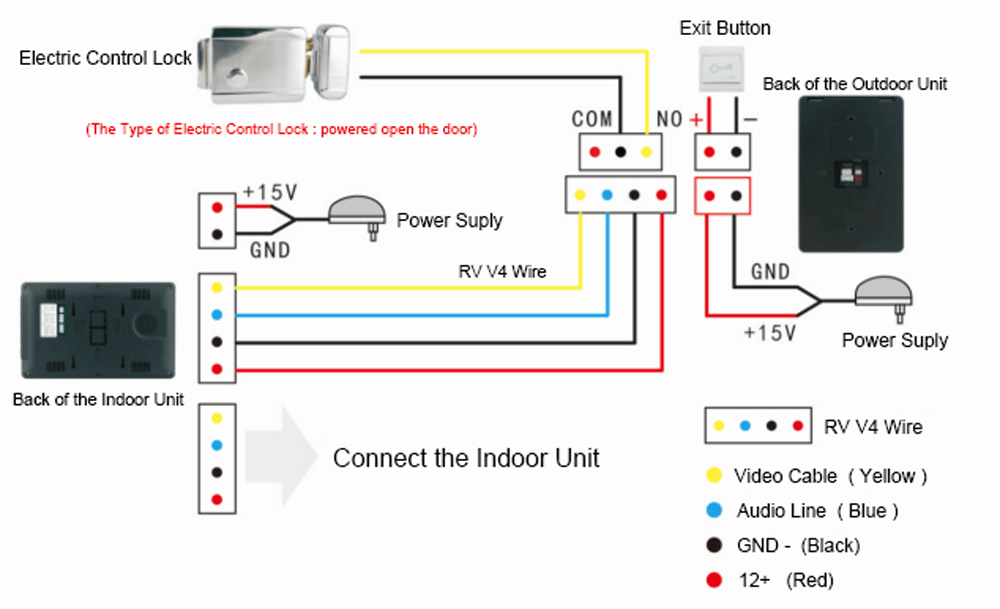

Connect with Electric Control Lock
Installation Diagram
1) Outdoor Unit

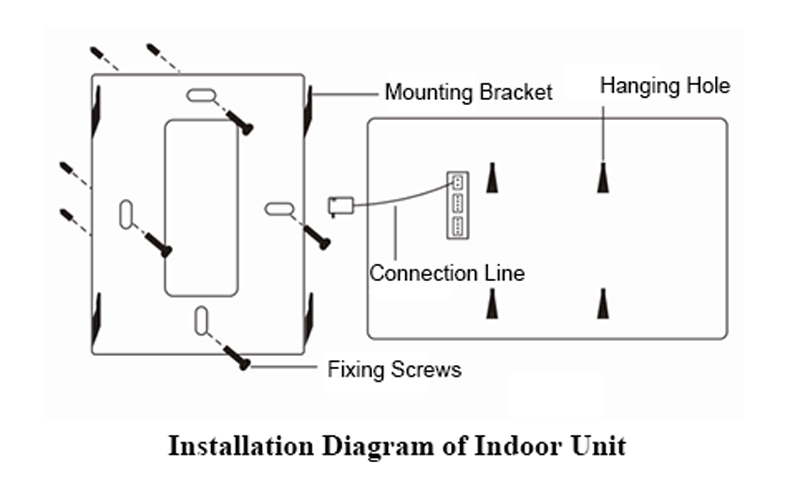

1) Indoor Unit
